Schleber Carburetor Fuel Leaks

1 / 3

Fuel pouring out of the bottom of your carburator is a common problem.   First try water pump packing on the two holes where the jet adjustment is.  If that doesn't work try this:

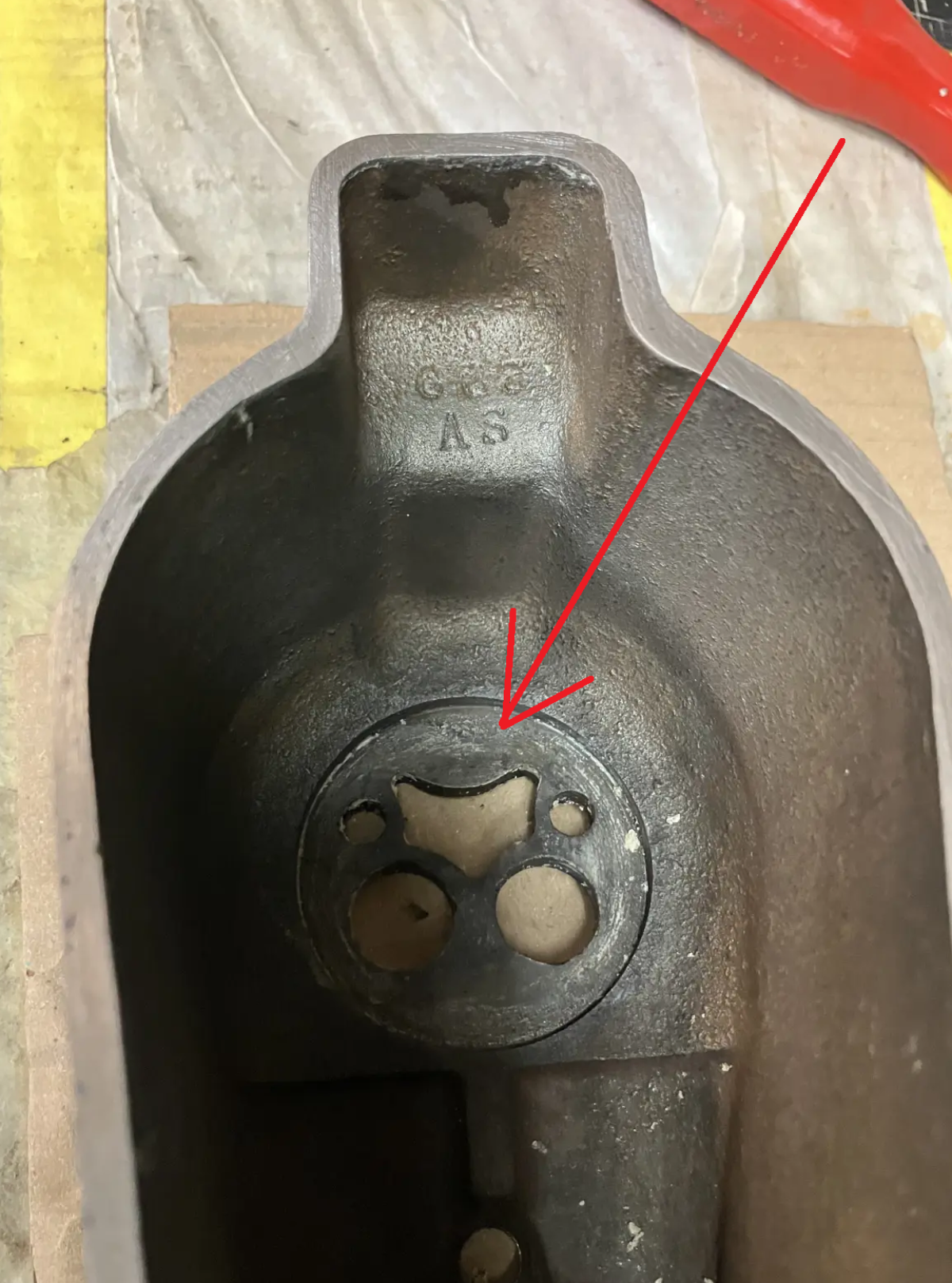

The two holes on the bottom of a Schleber Duplex are for adjusting the jets. You frequently get leaks there. The cure that works 90% of the time is to take some vacuum hose and cut off a 1/4 and put it in the hole and then feed in the jet. Delicately feed in the gland. This is what was suggested by Tim at Daytona Carb and it worked for mine when it was leaking fuel everywhere.





Oct 23, 202573 views
2 Replies
5 Likes
73 Views
