Water Pump Rebuild

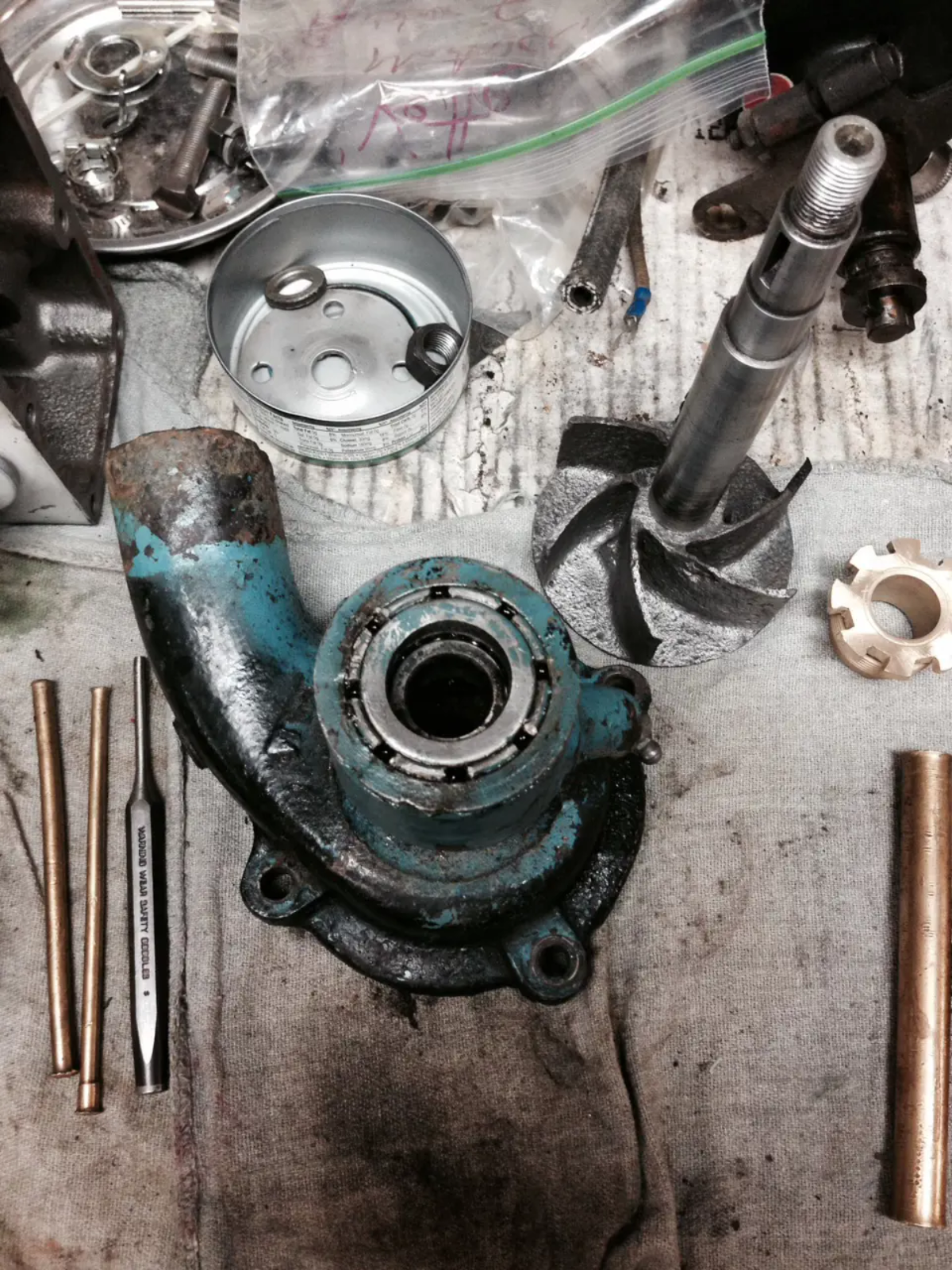

See attached picture of my water pump. Could some one confirm that the bearing is removed by turning the insert counter clockwise? It sure looks that way but is coming out hard.

Sep 22, 201448 views

Replies (4)

· Oct 7, 2014

I got a call from Dan Shaferman in Lansing with help on taking this apart. Here is what he said. I'll let everyone know how it goes.

1. Be sure the lock wire is removed. It may be hidden under grease or sediment but the the bearing cannot be removed until the wire is taken off.

2. Pop the seal out. Do not worry about bending it as you can hammer it back into shape before re-installation.

3. Make a tool that fits into the holes. Turn counter clockwise to remove.

· Oct 15, 2014

The procedure as posted works. We needed to make a tool to actually spin the insert out. The bearing in my pump actually looks find but I'll see about getting a new one. I'll post the source if anyone else needs one.

· Oct 15, 2014

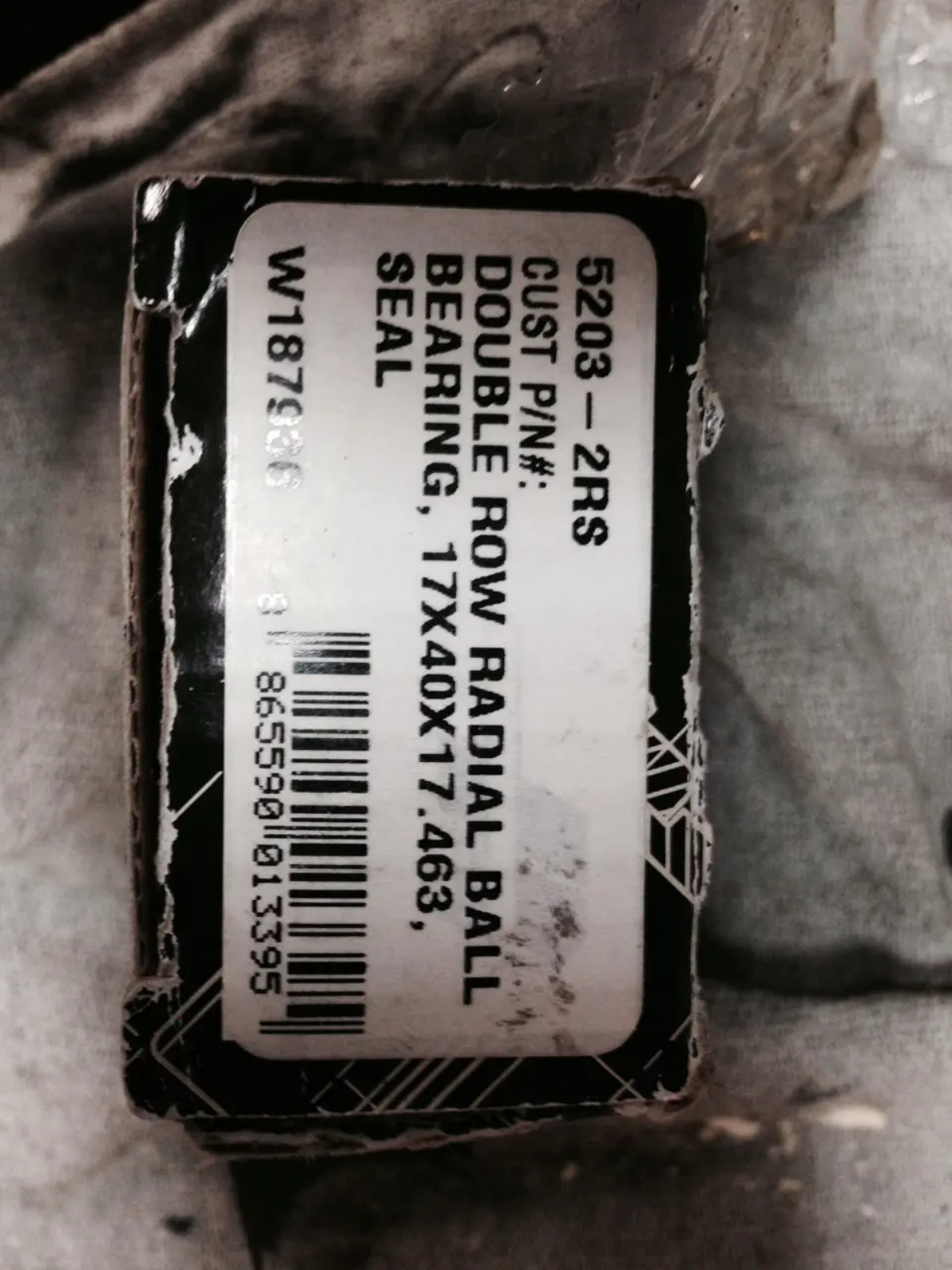

Here is the bearing. You can order one from Bearing Specialties, 508-798-2222 Scott.

(edited)

· Jan 19, 2015

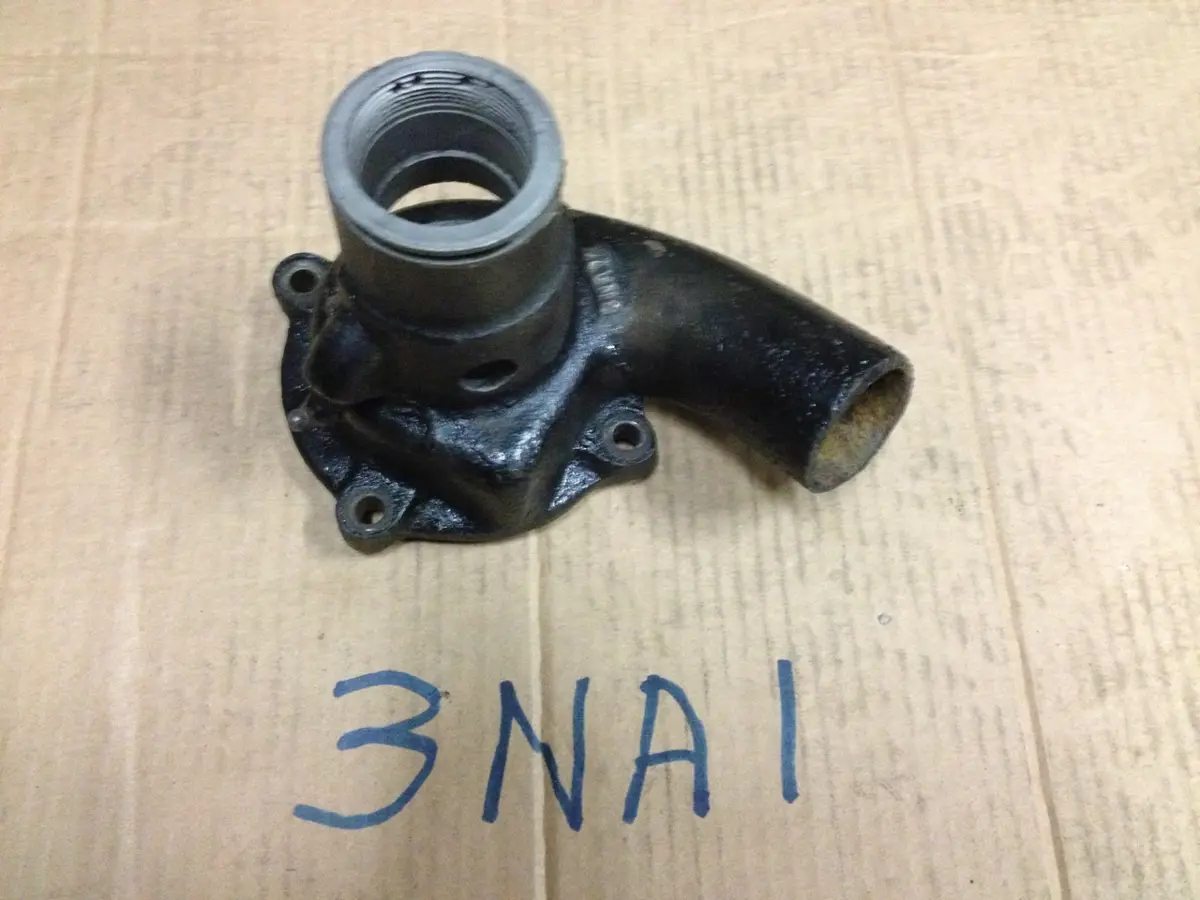

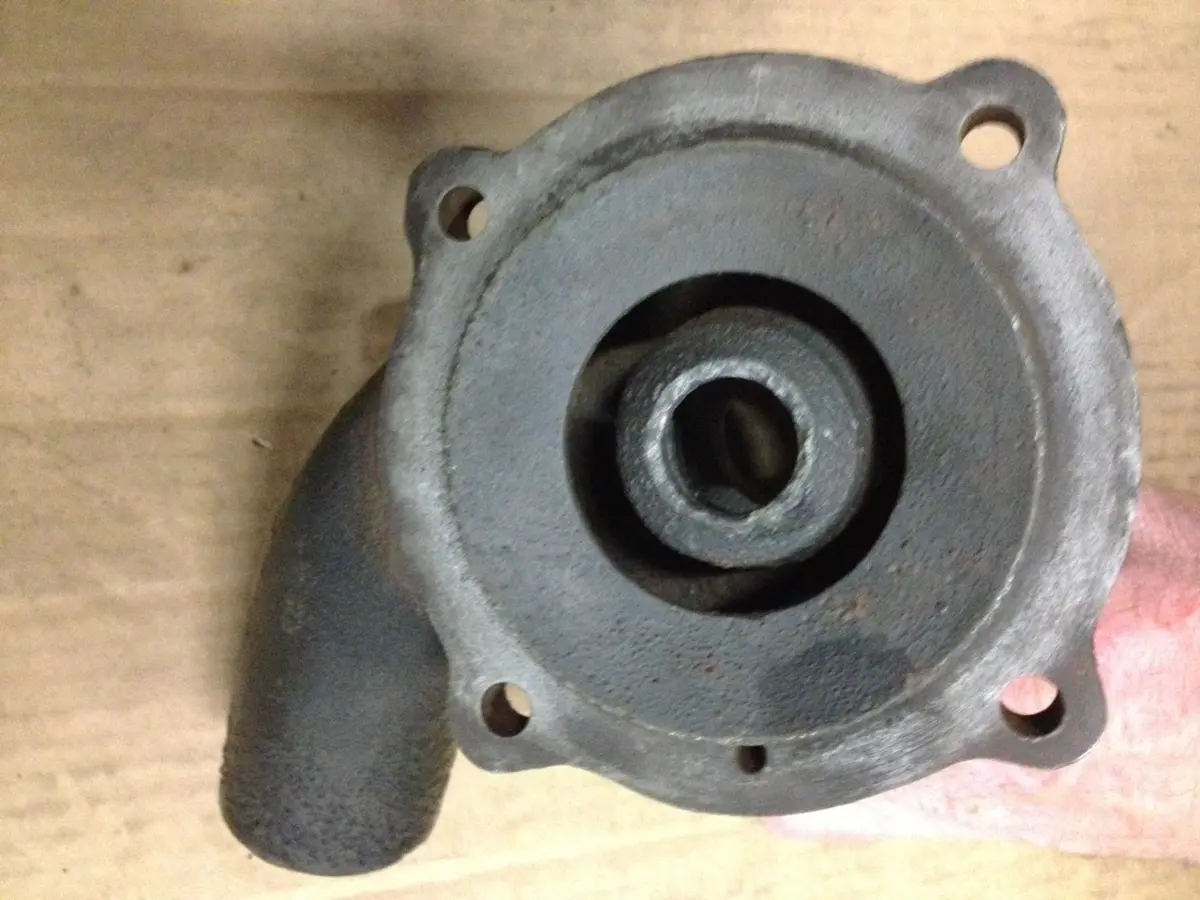

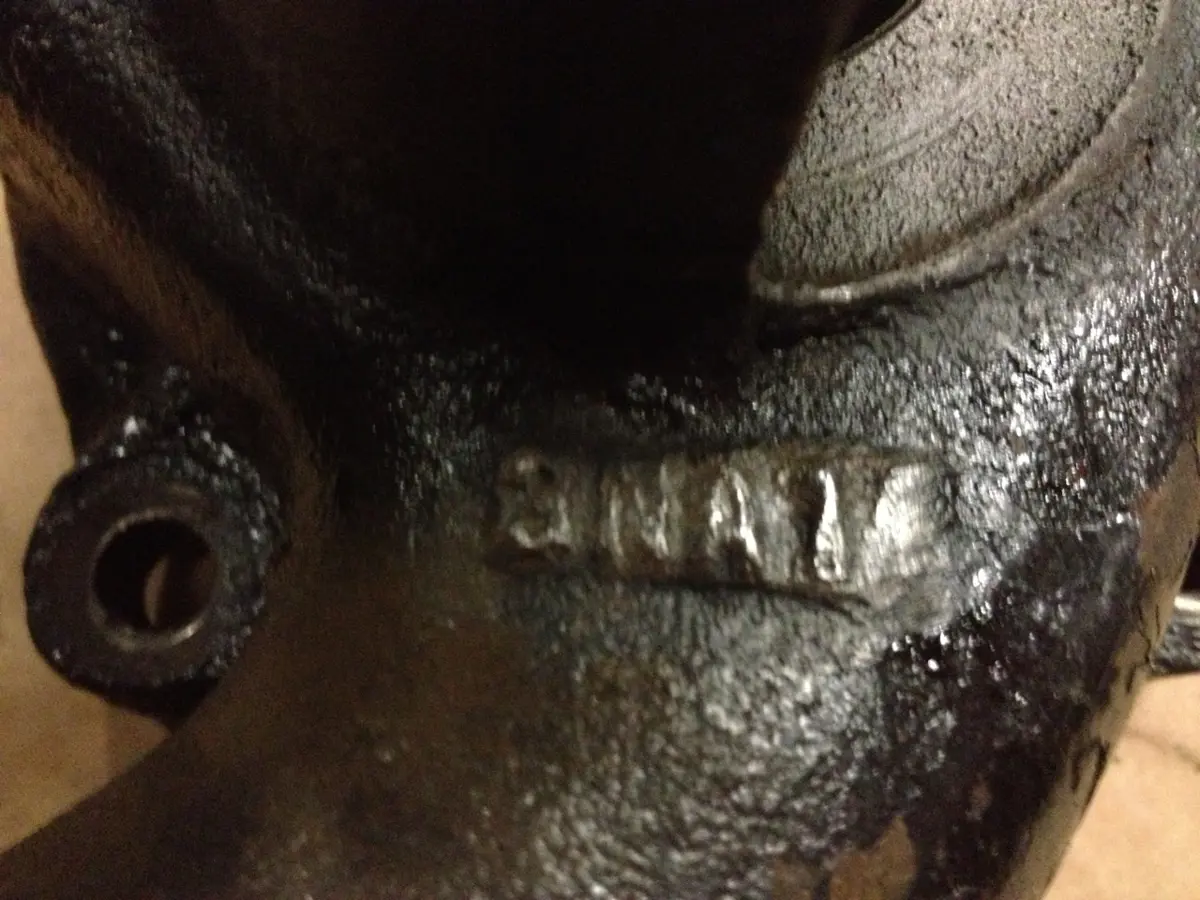

Here are some pictures from Mark of his water pump and the part number in case anyone ever needs to find one.

(edited)
