Spring Specifications

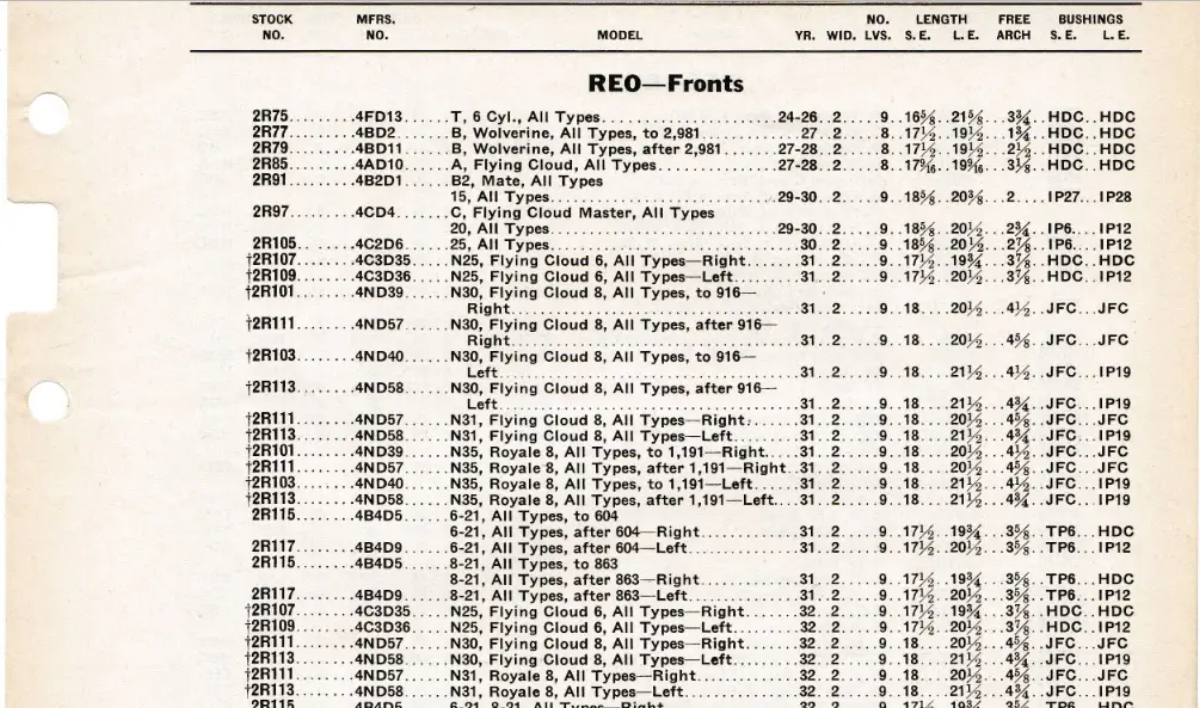

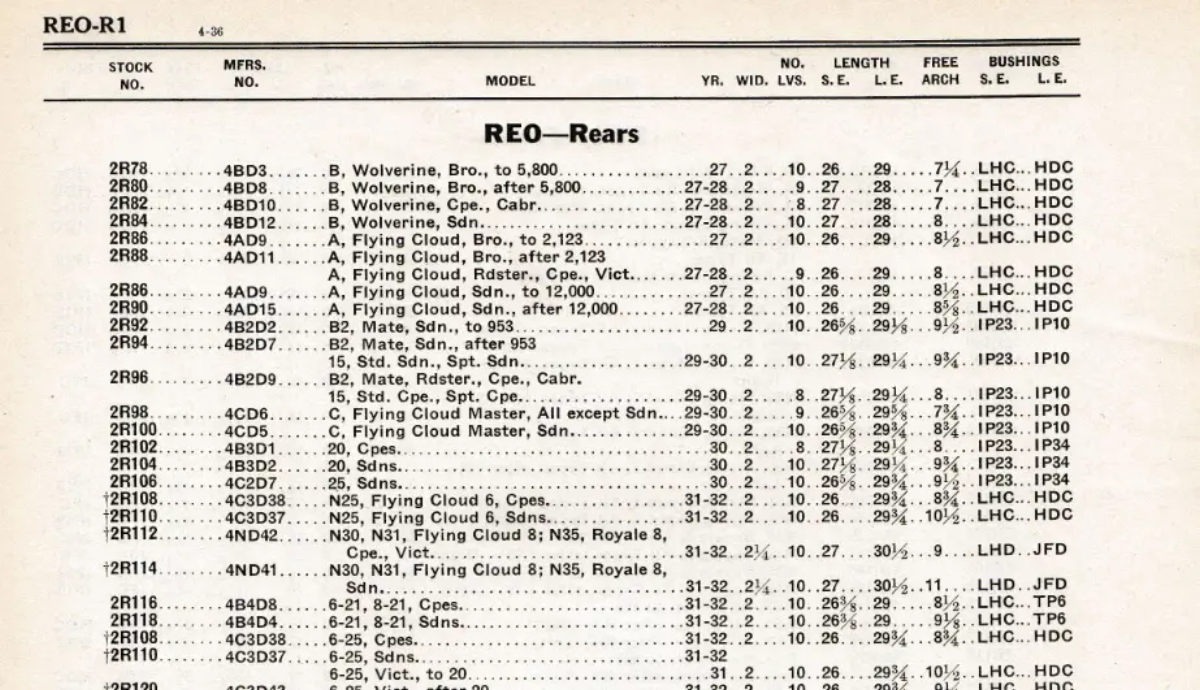

From Mark (who needs new springs) via Jim HazlewoodThe manual shows all 1931 Reo Royales use the same front springs regardless of body style. That changed in 1932. Here are the specs for you.Front Left - Width - 2"; no. of leaves - 9; Length - 18 x 21 1/2; Height - 4 3/4; Bushing size - 3/4 x --;(bushing on the front of the main leaf only); Weight - 29 lb; Main leaf weight - 7 lb.Front Right - Width - 2"; no. of leaves - 9; Length - 18 x 20 1/2: Height - 4 5/8: Bushing size - 3/4 x 3/4: Weight - 28 lb; Main leaf weight - 7 lb.1932 Flying Cloud Coupe rear - ( manual skips from 1929 t0 1932 on the rears with no explanation) Width - 2"; no. of leaves - 9; Length - 26 1/2 x 28 1/2; Height - 8 3/8; Bushing size - 7/8 x pin; Weight - 42 lb; Main leaf weight - 9 lb. (Don't know if these measurements apply to 1931 or not)You may be able to get new springs made at Harry's Spring Service in London Ontario - 519 432 8687 - they have specs for a lot of the old stuff and their prices are very reasonable. They have been in business for over 50 years I think. At least the shop looks it!
