Bolt Holes in Wheel Drums

1 / 2

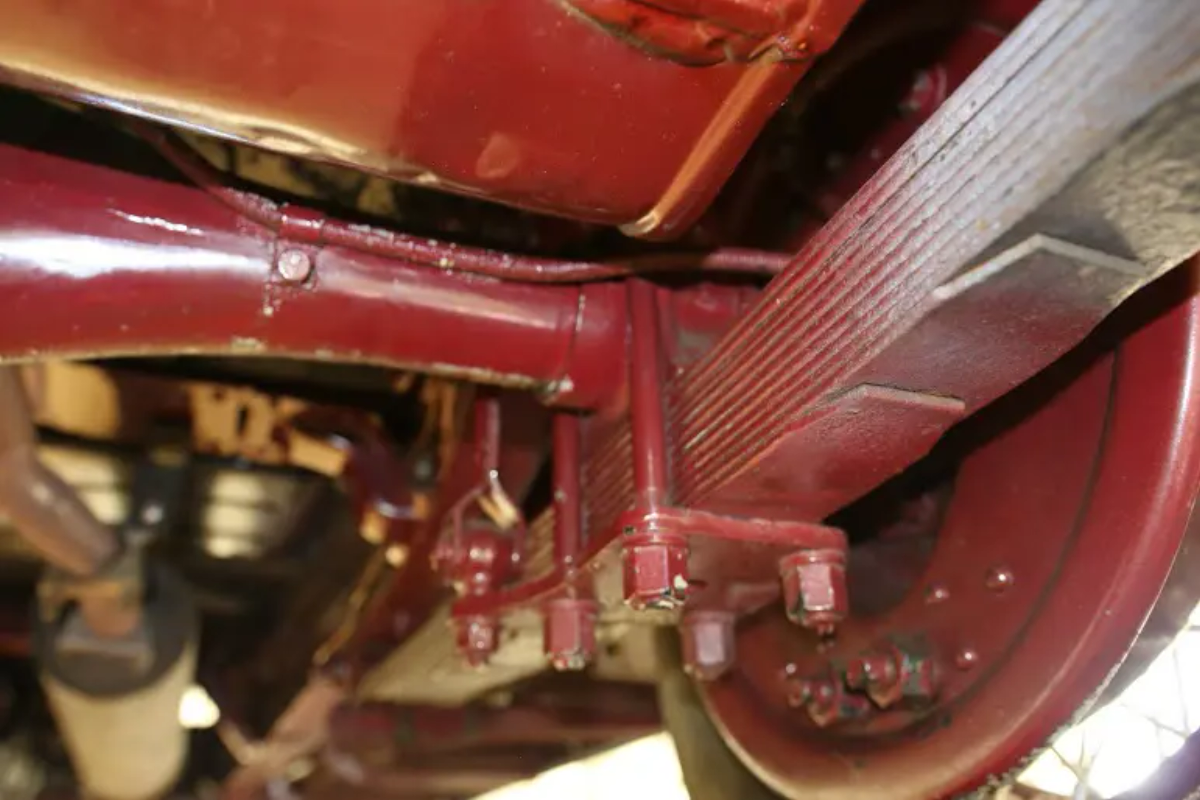

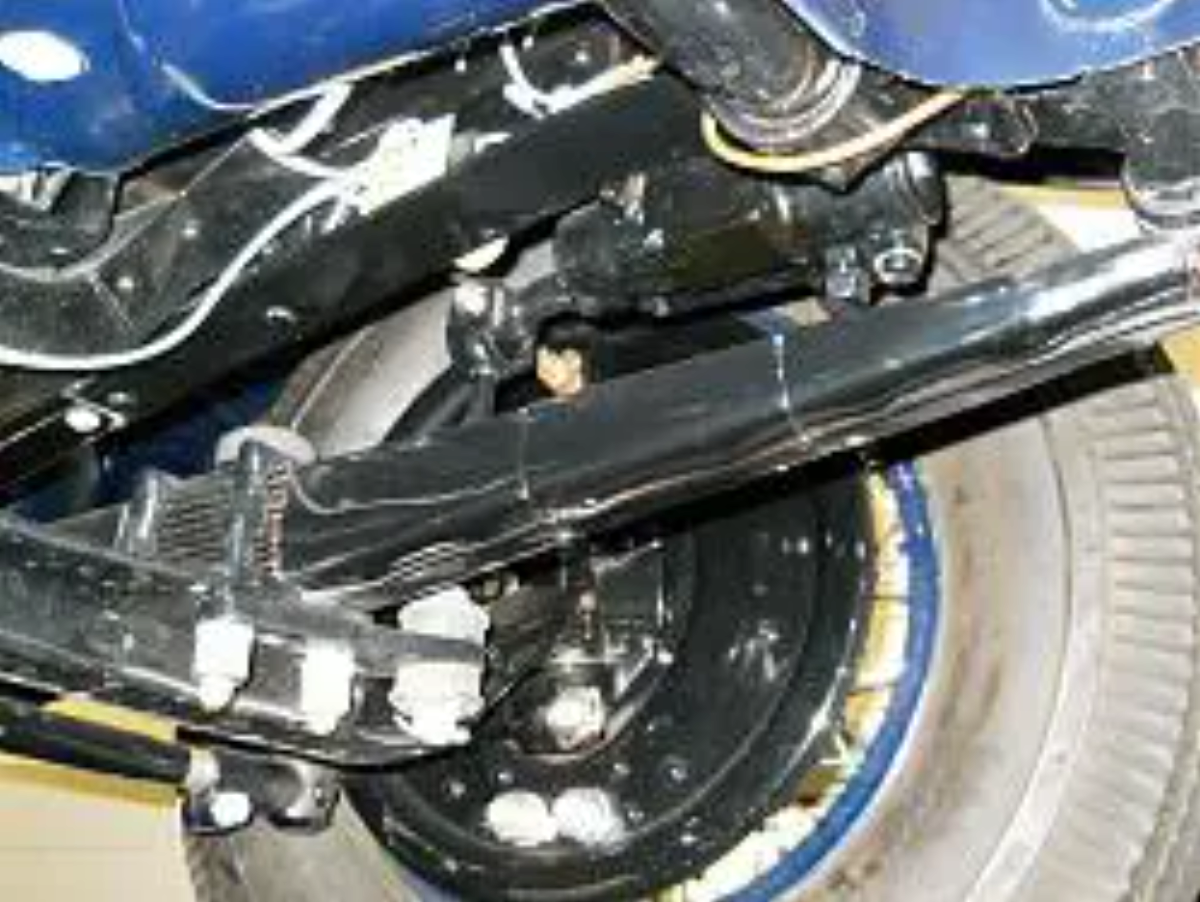

From Mark:Hello Everyone , On my car on the wheel drum I have 2 holes side by side on the bottom of the drum . I see from A.J. picture there is bolts in these holes ? Does anyone know what they are bolts .etc.? Thanks , Mark

Sep 4, 201453 views

Replies (3)

· Sep 5, 2014

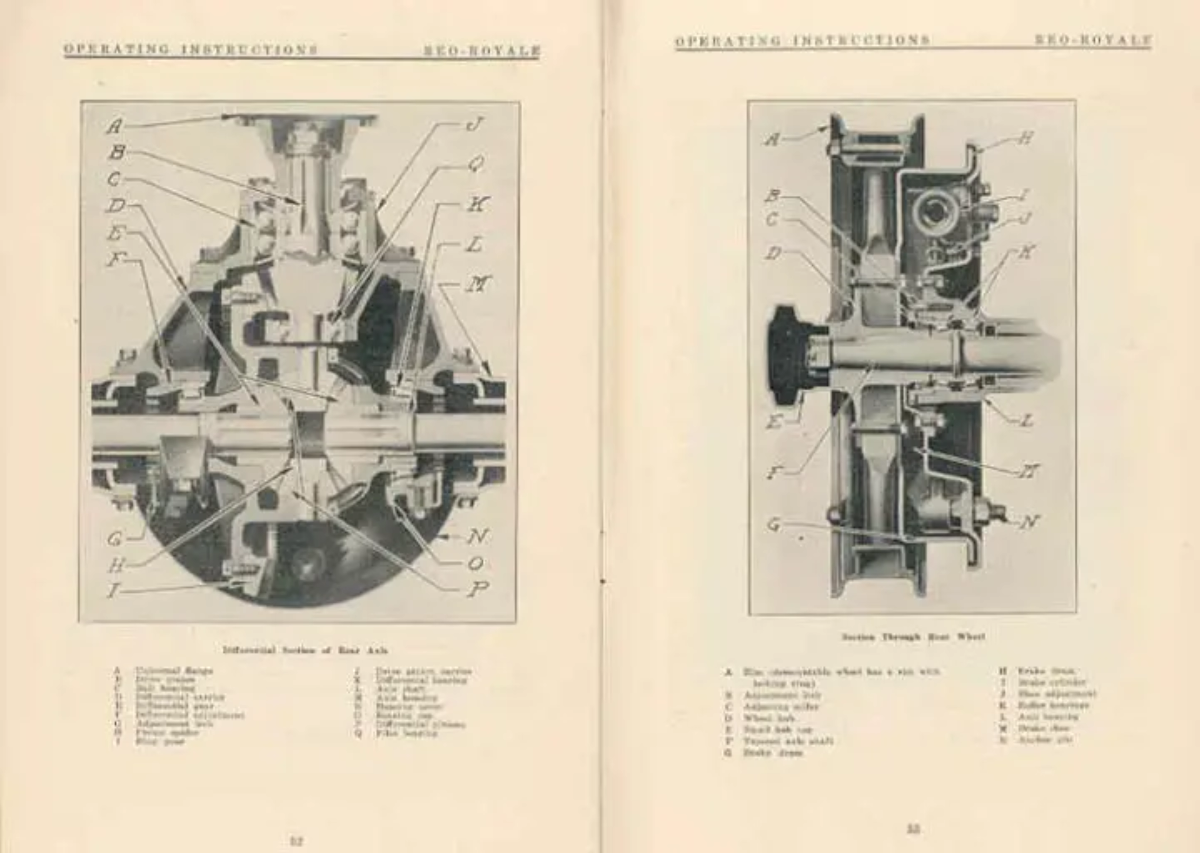

Here is a picture from the owners manual.

(edited)

· Dec 5, 2014

These are called Brake shoe anchor pins . With a lot of help from A.J. , John P , Joe A , Nick A and Bill Barker . I got 8 anchor pins . Thanks to everyone .

· Dec 25, 2014

Thanks for the offer Kirk but Bill Barker found the 8 that I required .
