Royale Timing Chain

From John:Chilton # G J 27 which has a 1/2" pitch, 1 1/2" width, 63 links,length 31 !/2" and a guide type of C GMy further research shows it also is used on the following cars:'29 Dodge Brothers Senior'25-26 Packard 6 cly'25-26 Packard 8 cly'27 Packard 6 cly models 426/433'27 Packard 8 cly models 336/343'25 Peerless model 70'28-29 Reo Flying cloud (6 cly)'30 Reo 20/2531 REO 621.625,821,825,831,830,835

Jan 3, 201622 views

4 Replies

0 Likes

22 Views

Replies (4)

· Jan 16, 2016

John did this information come from that Chilton manual you just bought ? It looks very detailed .

· Jan 16, 2016

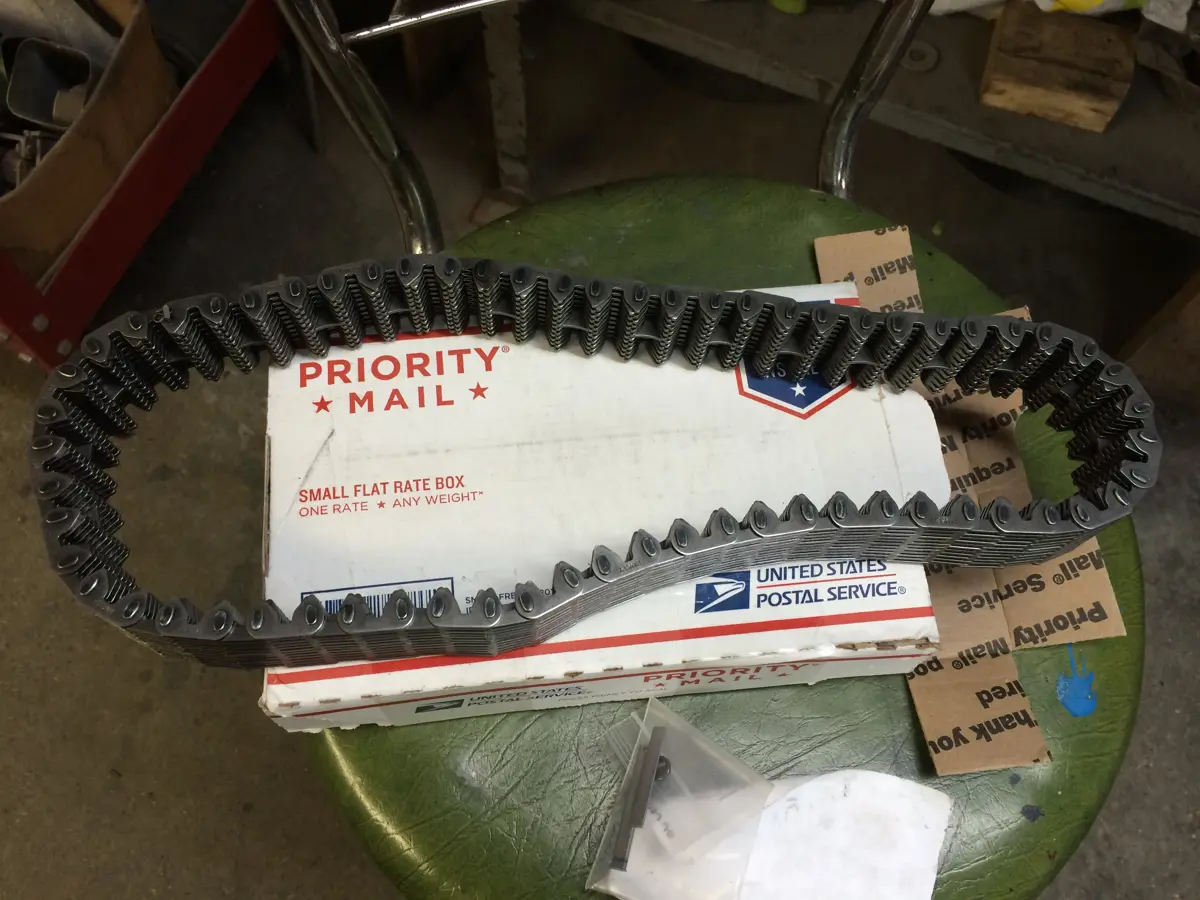

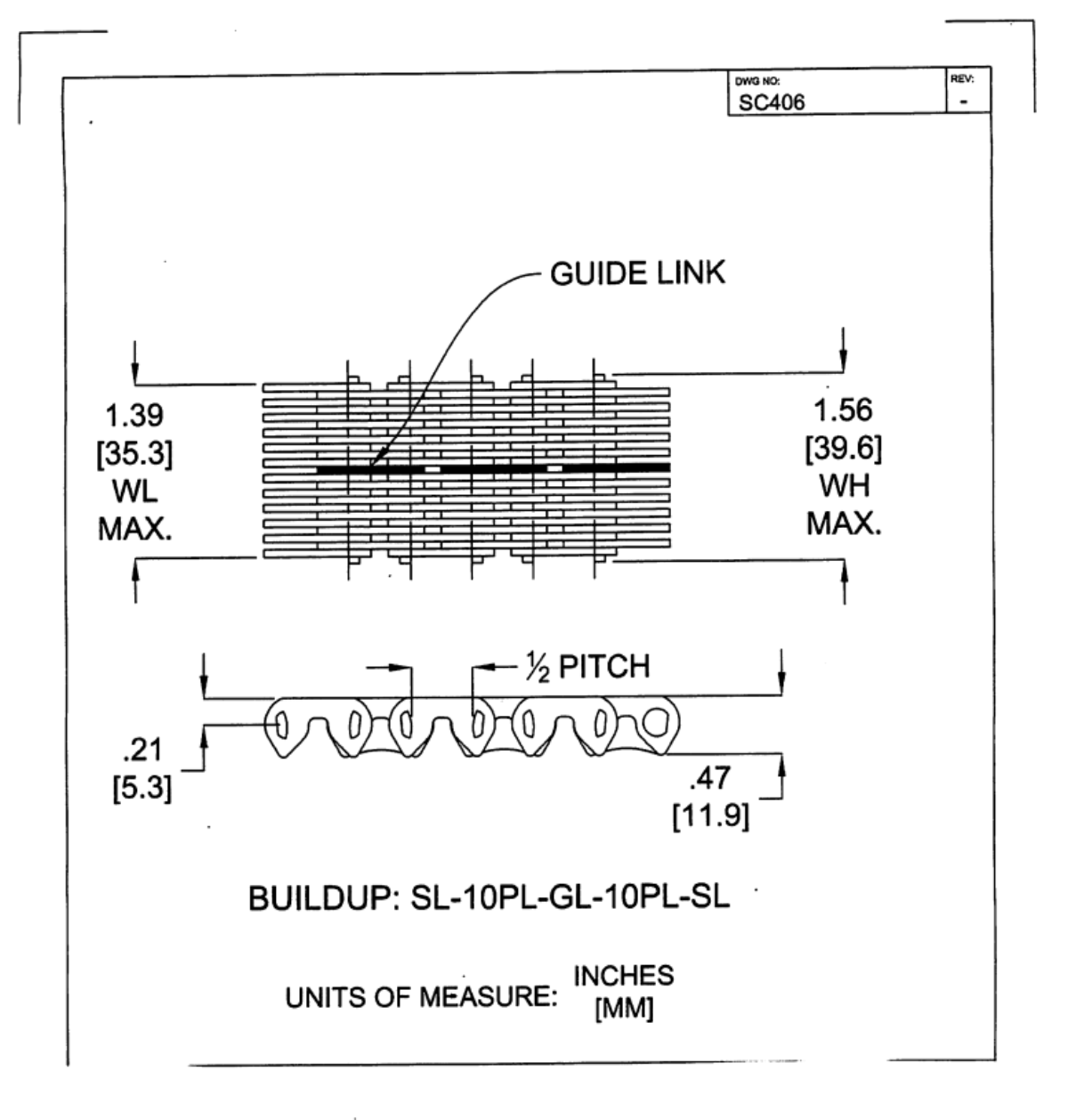

Attached is the spec that John sent me (via Tim) from the dodge club. I will match this up with my chain which I have been wearing around my neck and report back on Monday.

(edited)

· Jan 16, 2016

There must of been some advanced engineering back in 1925 at these other car manufacturers . To still be able to use it 1931 !

· Jun 21, 2017

Just to close this up, I did order one from Tom and Cindy Myers at Myers Early Dodge Parts, 734-856-1207 office 734-341-6139 cell.

It worked great. If you call them, the chain is for a 29 Dodge Brothers Senior, 63 links, 31.5 length. But mention it is for a Royale and they should know what to send you.
