Correct Springs for Headlight Wire Loom

1 / 3

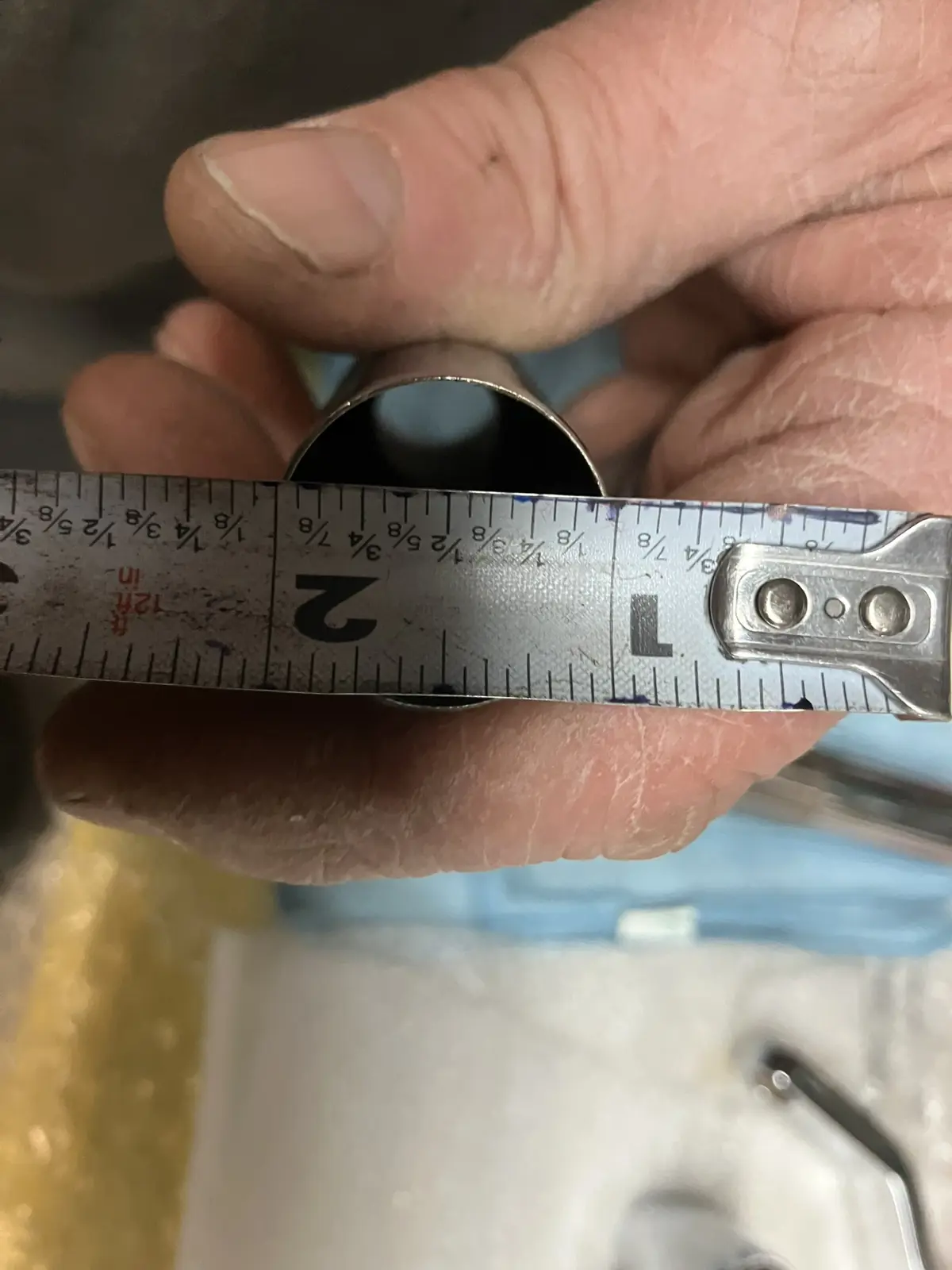

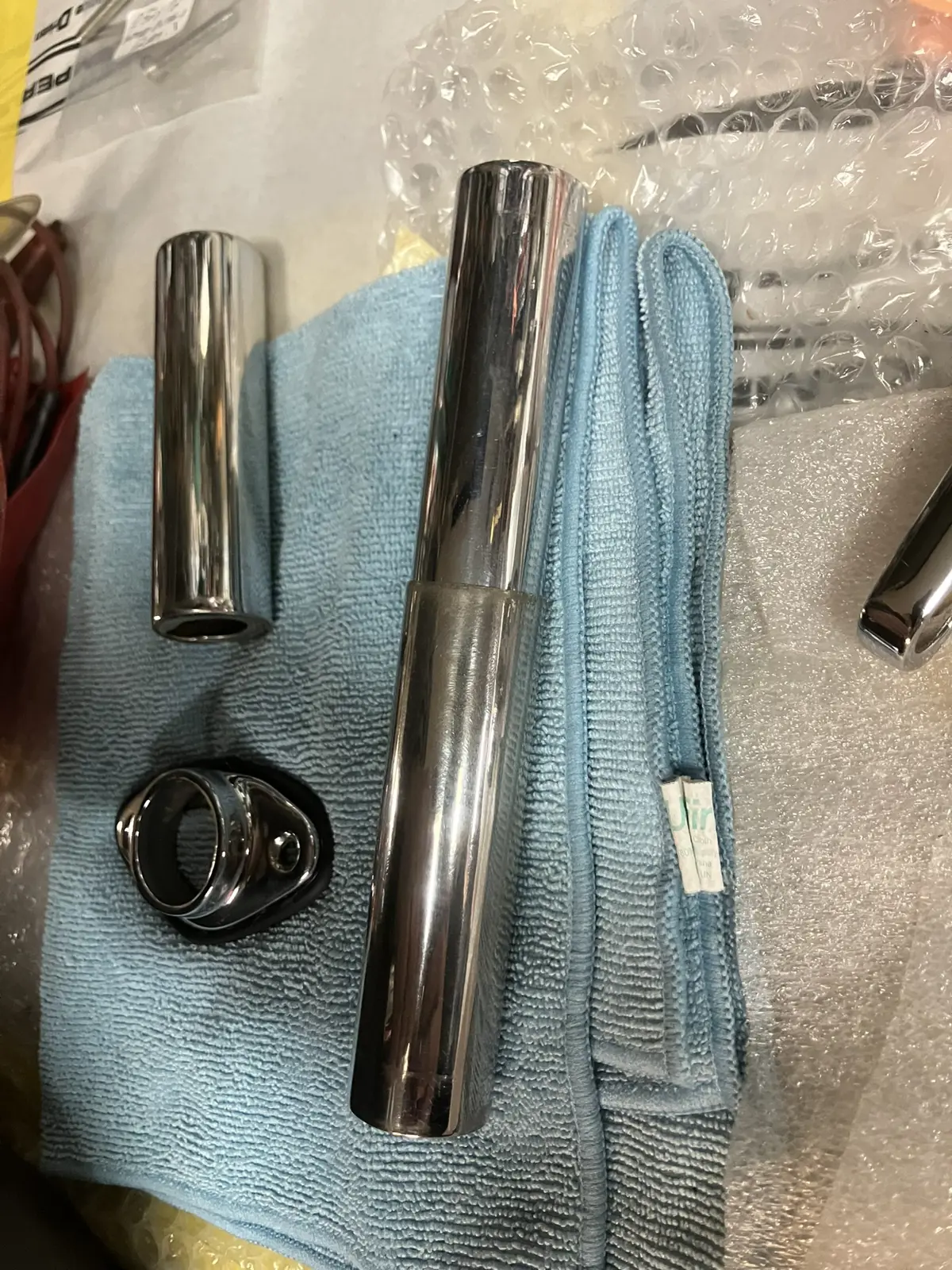

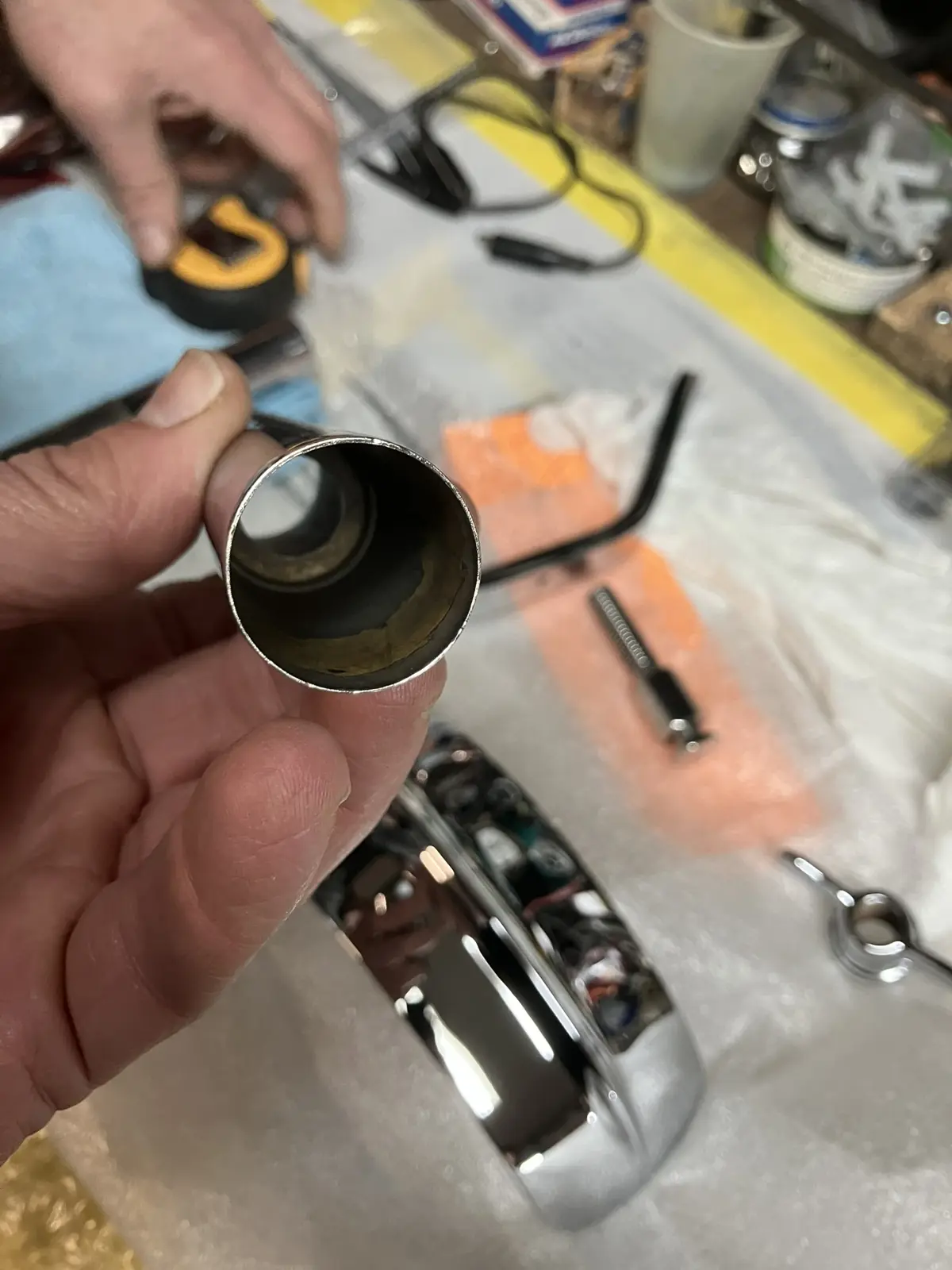

So I ordered spings for the pipes that hold the headlight wires. They seems to be spring loaded although I don't have the original springs anymore. Here is what I ordered: Compression Spring 2" Long, 0.845" OD, 0.685" ID 9657K401 From Mcmaster Carr. Will let you know how it works out.

Jan 152 views

Replies (2)

· Jan 15

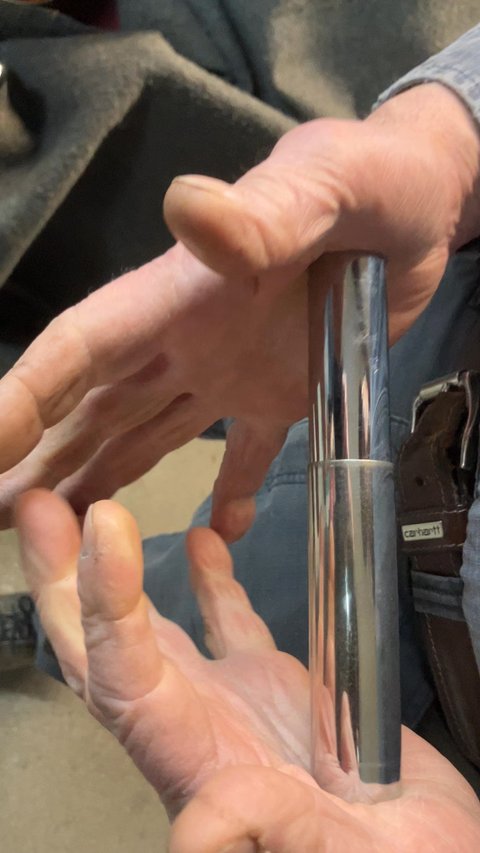

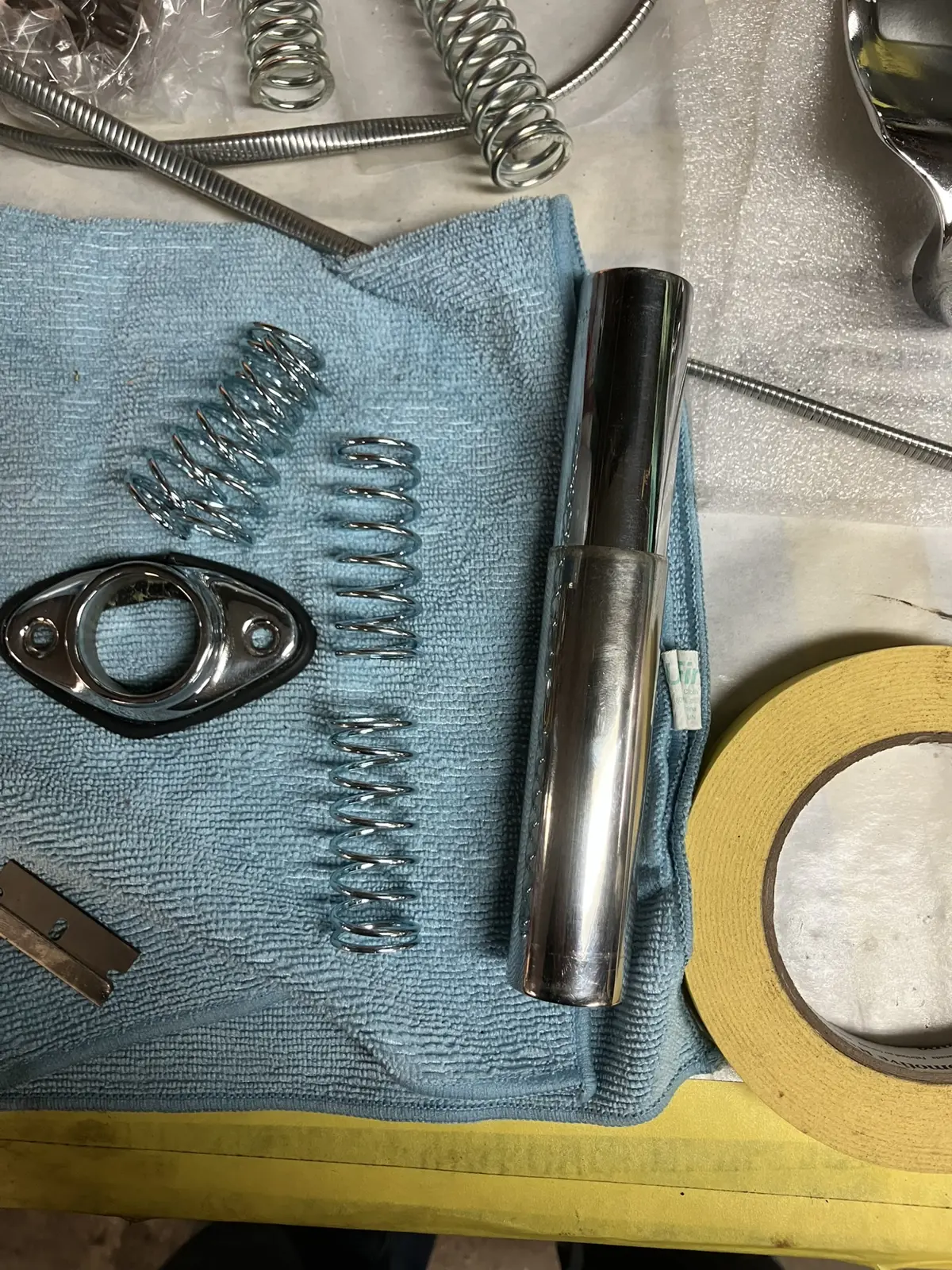

The McMaster Carr springs work great. Here is a video and picture of them. We had to use two to get the right length.

(edited)

1 / 2

· Jan 19

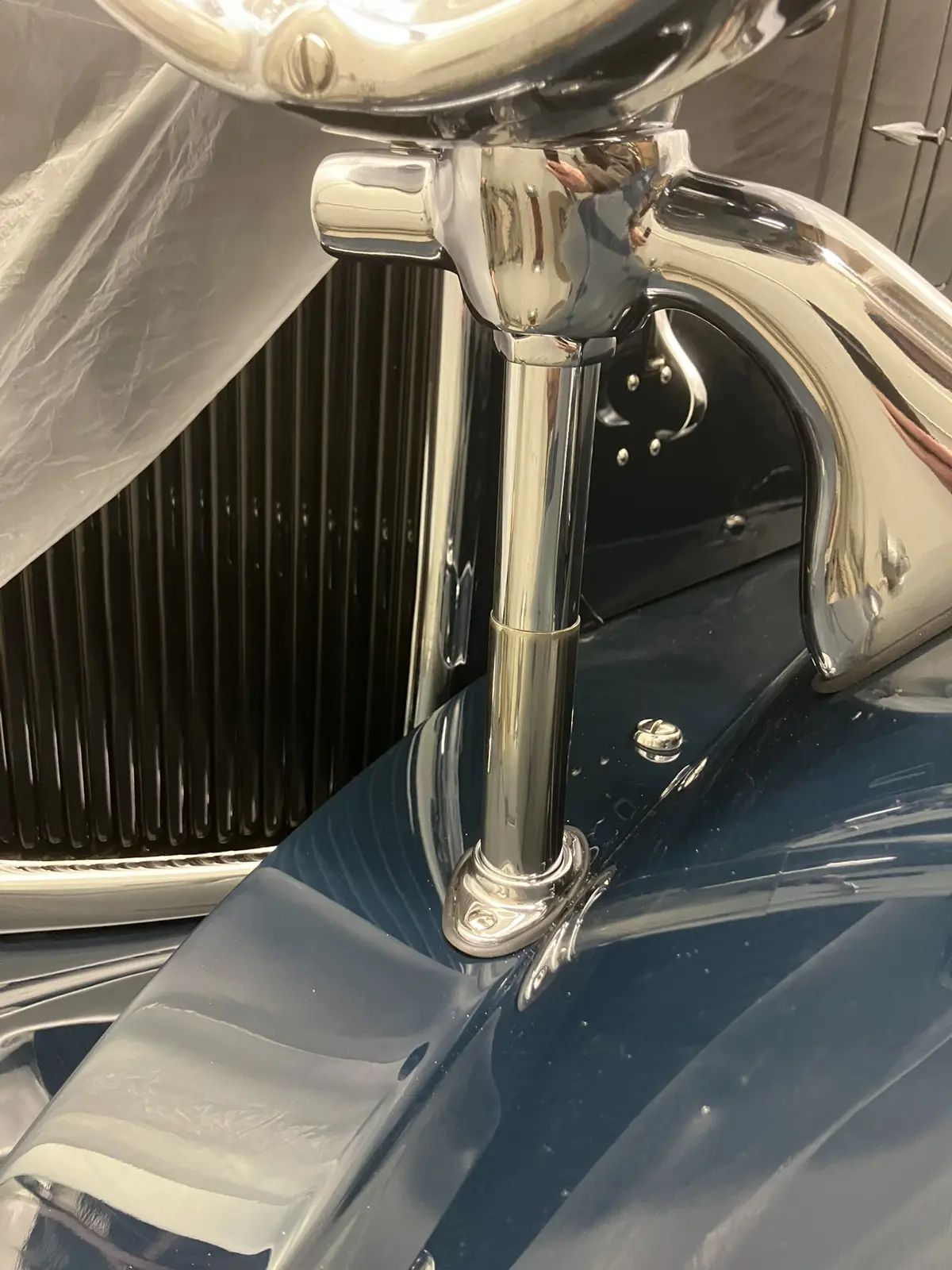

Correction, three per side so 6" in length would be correct if you want to use a single spring. Here is the finished product.
